Alkali Free Fireproof 590g Double-sides 0.45mm Silicone Coated Fiberglass Fabric

Brand Name : Unionfull

Model Number : UPSE-8732D160

Certification : ISO9001,ISO2008,SGS,TUV

Place of Origin : China

MOQ : 500m2

Price : usd1.8~2.9/m2

Payment Terms : Western Union, T/T, L/C

Supply Ability : 100000m2/Month

Delivery Time : 15days after receive the payment

Packaging Details : 50 meters per roll, 20 rolls one pallet

Material : Silicone coating

Coating sides : 2

Type : E-glass

Weave : Satin 4SH

Thickness : 0.45mm

Width : 1/1.2/1.5m

Roll Length : 50m

Total Weigth : 590g/m2

Basic Weight : 430g/m2

Color : Gray

Contact Now

Alkali Free Fireproof 590g Double-sides Silicone Coated Fiberglass Fabric

Fiberglass cloth is divided into high alkali cloth, medium alkali cloth and alkali-free cloth according to the alkali content.

E-glass, also known as alkali-free glass, is a borosilicate glass. It is currently the most widely used glass component for glass fiber, has good electrical insulation and mechanical properties, is widely used in the production of glass fiber for electrical insulation, and is also widely used in the production of fiberglass for glass fiber reinforced plastics.

Silicone cloth has fireproof effect, it is also called fireproof cloth. Since the material absorbs a large amount of heat when it is burned by flames and prevents the flame from passing through and isolating the air, so glass fiber cloth is mainly used in industry: heat insulation, fire prevention and flame retardant.

This type of fabric is double-sides coating, total weigth is 590g/m2. It is also can be customized to one side coating.If you want other weigth, please feel free to contact us.

Data:

Main Specifications
Code

Weight

(g/m2)

Thickness

(mm)

Width(m) Color Coating sides
UPSE-8732S40 470 0.45 1/1.2/1.5 grey,red,white 1
UPSE-8732D80 510 0.45 1/1.2/1.5 grey,red,white 2
UPSE-8732S80 510 0.45 1/1.2/1.5 grey,red,white 1
UPSE-8732D160 590 0.45 1/1.2/1.5 grey,red,white 2
UPSE-8784D80 930 0.8 1/1.5 grey,red,white 2
UPSE-8784D160 1010 1.00 1/1.5 grey,red,white 2

Properties:

1.Chemical Resistant

Resistant to strong acids, alkalis, aqua regia and various organic solvents.

2.Low thermal conductivity: 0.035W/M·K—0.045 W/M·K±0.005 (at normal temperature)Temperature resistant


3.Temperature resistance

Can standard with high temperature 280 ° C, and low temperature -70 ° C

4.Fire resistance

The material absorbs a large amount of heat when it is burned by flames and prevents the flame from passing through and isolating the air.

5.Insulation

Glass fiber sun fabric has good thermal insulation properties that other fabrics do not have, which greatly reduces the use rate of room air conditioners, thereby saving energy.

6.Constant size
The material of the fabric itself determines that it is not malleable and maintains a flatness for a long time.

Application:

1. In the machinery industry, artificial teeth and artificial bones, aircraft structures, mechanical parts, etc. are applied.
2.In the petrochemical industry, pipelines, anti-corrosion materials, storage tanks, acid, alkali, and organic solvents are applied.
3. In the transportation industry, buses, yachts, tankers, cars, etc. are used.
4. In the construction industry, there are kitchens, column beams, decorative panels, fences, etc.

Pictures:

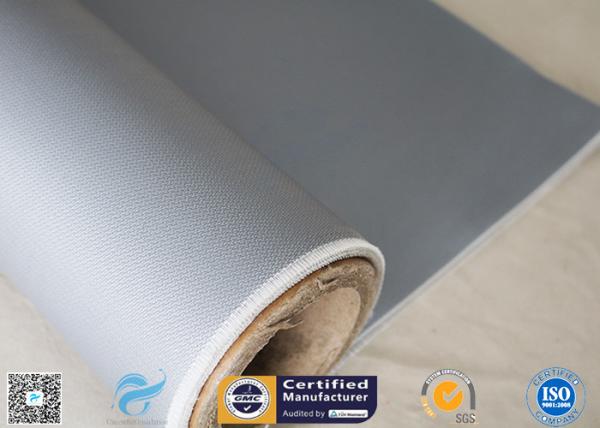

Alkali Free Fireproof 590g Double-sides 0.45mm Silicone Coated Fiberglass FabricAlkali Free Fireproof 590g Double-sides 0.45mm Silicone Coated Fiberglass Fabric

Contact us directly, we'll be happy to serve you ---- Unionfull Group Ltd
